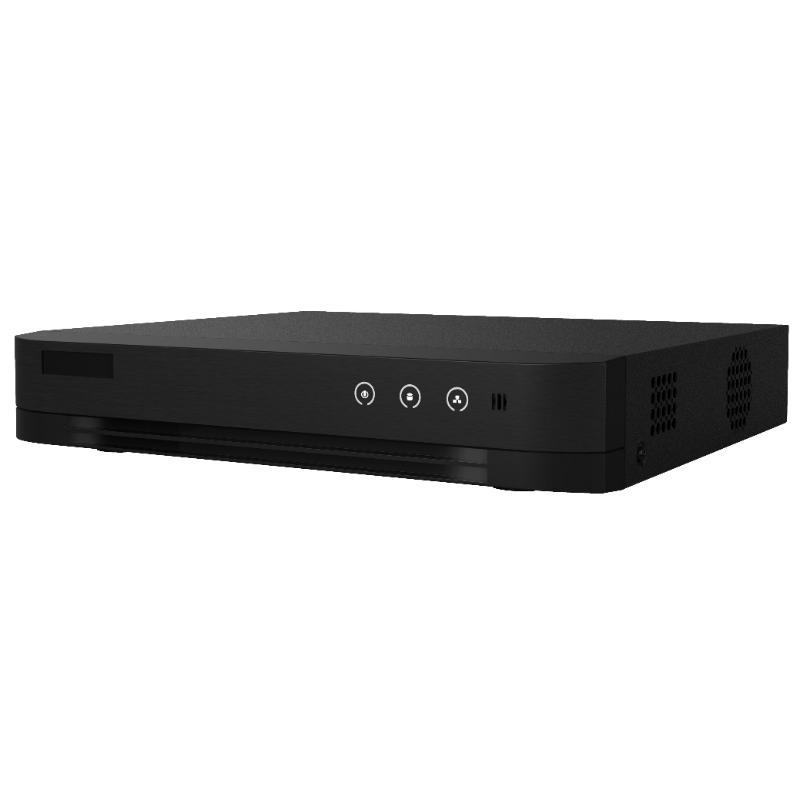

iDS-7208HQHI-M1/E
4-ch 1080P 1U H.265 AcuSense DVR
Deep learning based human and vehicle targets classification of Motion Detection 2.0
Deep learning-based perimeter protection
H.265 Pro+/H.265 Pro/H.265 video compression
HDTVI/AHD/CVI/CVBS/IP video inputs
Audio via coaxial cable
Up to 12-ch IP camera inputs (up to 6 MP)
Encoding ability up to 3K/5M Lite @ 12 fps
تصنيف الأهداف البشرية والمركبات استنادًا إلى التعلم العميق لكشف الحركة 2.0
حماية محيطية تستند إلى التعلم العميق
ضغط الفيديو H.265 Pro+/H.265 Pro/H.265
مداخل فيديو HDTVI/AHD/CVI/CVBS/IP
الصوت عبر كابل محوري
ما يصل إلى 12 مدخل كاميرا IP (حتى 6 ميجا بكسل)
قدرة تشفير تصل إلى 3K/5M Lite بمعدل 12 إطارًا في الثانية
| Our Products: DVR |
| Brand: hikivision |
| Video Display: 2mp to 5mp |
| Video Recording: 2mp |
| Video Compression: H.265 Pro/H.265/H.264 |
| Video Bitrate: 32 Kbps to 6 Mbps |
| AcuSense: Support |
| Audio Input: 1-ch / RCA (2.0 Vp-p 1 KΩ) 8-ch via coaxial cable |
| Audio Bitrate: 64 Kbps |
| Total bandwidth: 96 Mbps |
| Device type: 4-ch/1080p (HQHI) |
| IP Video Input: 12ch \ Up to 6mp resolution |
| Audio Output: 1-ch/ RCA (Linear 1 KΩ) |
| Frame Rate(FBS): 1080p Lite @15 fps |
| Network Interface: 1RJ45 10/100 Mbps self-adaptive Ethernet interface |
| Protocol ONVIF: Supported |
| Disk type: 1 SATA interface |
| USB Interface: Rear panel:1×USB 2.0 |
| Alarm In/Out: Not found |
| Power Supply: 12 VDC 1.33A |
| storage capacity: 10TB for each disk |
| Consumption: ≤12W (without HDD) |
| Working Temperature: -10 °C to +55 °C |
| Working Humidity: 10% to 90% |
| Weight: 1kg (without HDD 2.2 lb.) |
