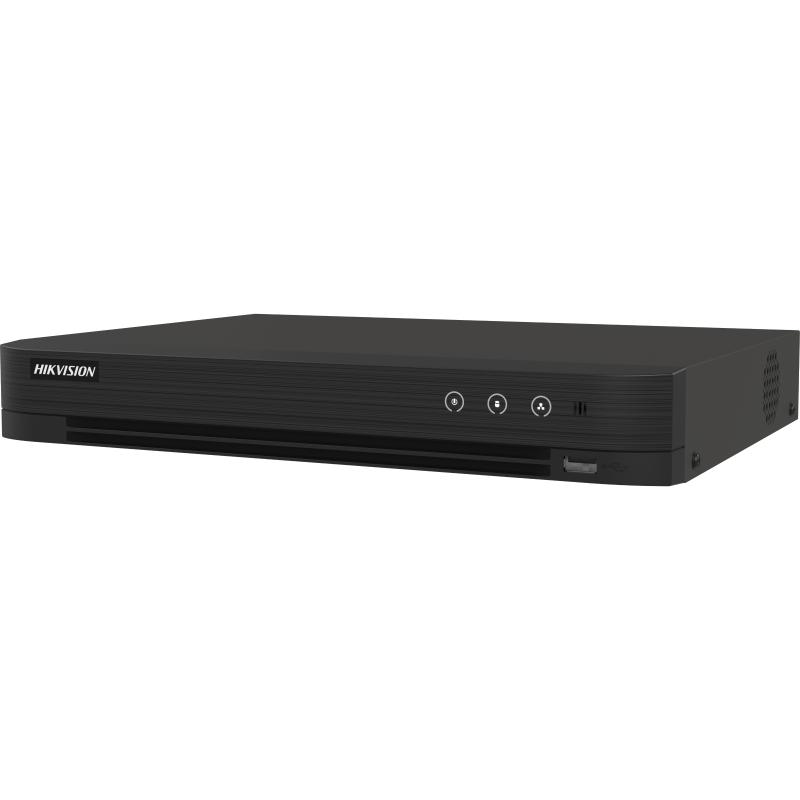

iDS-7204HQHI-M1/S
AcuSense four-channel H.265 DVR recorder with 1080 pixels resolution and one module 4 Channels and 1 HDD 1U AcuSense DVR Reduce false alarms by classifying human goals and compounds based on deep learning Effective pro + H.265 compression technology Coding capacity up to 3K/5M Lite at 12fps 5 Adaptive Inserted Signals (HDTVI/AHD/CVI/CVBS/IP) Up to 6 mesh cameras can be connected.
- 4 قنوات و 1 HDD 1U AcuSense DVR
- الحد من الإنذارات الكاذبة من خلال تصنيف الأهداف البشرية والمركبات استنادًا إلى التعلم العميق
- تقنية ضغط H.265 pro+ الفعالة
- قدرة الترميز تصل إلى 3K/5M Lite بمعدل 12 إطارًا في الثانية
- 5 إشارات يتم إدخالها بشكل متكيف (HDTVI/AHD/CVI/CVBS/IP)
- يمكن توصيل ما يصل إلى 6 كاميرات شبكية.
| Our Products: DVR |
| Brand: hikivision |
| Video Display: 2mp to 5mp |
| Video Recording: 2mp |
| Video Compression: H.265 Pro /H.265 |
| Video Bitrate: 32 Kbps to 6 Mbps |
| AcuSense: Support |
| Audio Input: 1-ch / RCA (2.0 Vp-p 1 KΩ) 4-ch via coaxial cable |
| Audio Bitrate: 64 Kbps |
| Total bandwidth: 72 Mbps |
| Device type: 4-ch/1080p (HQHI) |
| IP Video Input: 5ch \ Up to 6mp resolution |
| Audio Output: 1-ch/RCA (2.0 Vp-p) (using the first audio input) |
| Frame Rate(FBS): 5MP Lite @ 15 fps |
| Network Interface: 1RJ45 10/100 Mbps self-adaptive Ethernet interface |
| Protocol ONVIF: Supported |
| Disk type: 1 SATA interface |
| USB Interface: Rear panel: 2 × USB 2.0 |
| Alarm In/Out: Not found |
| Power Supply: 12 VDC 1A |
| storage capacity: 10TB for each disk |
| Consumption: ≤18W |
| Working Temperature: -10 °C to +55 °C |
| Working Humidity: 10% to 90% |
| Weight: 1.16kg (2.6 lb) |
